OpenSprinkler v1.4

This is version 1.4 with built-in USB programmer, DS1307 RTC and battery. Check the Hardware Release Video and the Firmware Tutorial Video. For details, please refer to the Online User Manual.

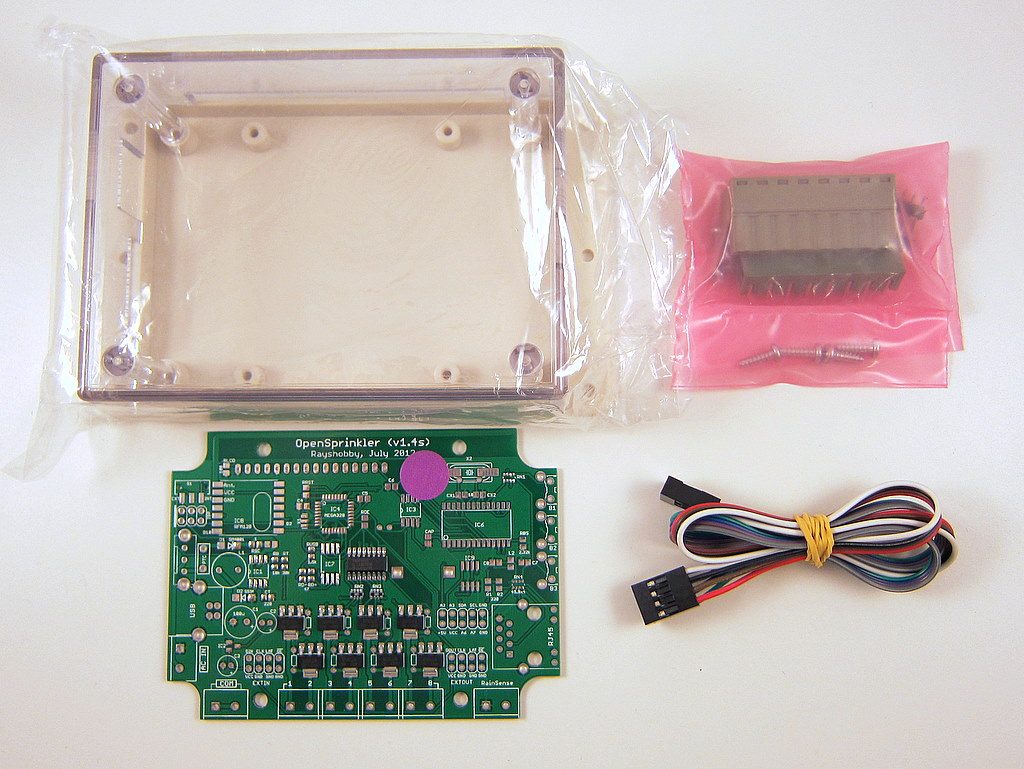

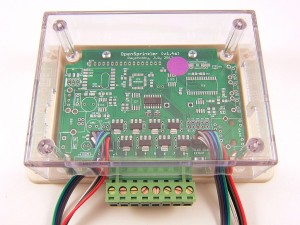

• We offer both a DIY kit 1.42u (including PCB, all through-hole components, and enclosure to make your own OpenSprinkler), as well as a fully assembled product 1.4s (using surface mount components).
• Controls 8 stations, has built-in USBtiny programmer, RTC and backup battery. To control more stations, buy zone expansion board below.
• Note: does not include 24VAC sprinkler transformer, which you can get from Amazon.com or local home improvement stores.
• For DIY kit, check the Assembly Instructions.
• The microcontroller is flashed with the latest Firmware 1.8.3.
• Also check the Accessories and Sensors sections below.

DIY kit 1.42u: $87.99	Assembled and Tested v1.4s: $149.99
(If the buttons don’t respond, make sure your browser’s pop-up blocker is disabled).

OpenSprinkler Zone Expansion Board

• Expand 8 stations. A 12-inch extension cable is included.
• For connection to OpenSprinkler, please check the OpenSprinkler User Manual for instructions.
• For connection to OSPi, please check the OSPi User Manual for instructions.
• Works with hardware v1.3 and v1.4 main controllers. Also works with v1.1 and v1.2 with slight modifications of the extension cable.

Fully assembled: $42.99

(If the buttons don’t respond, make sure your browser’s pop-up blocker is disabled).

OpenSprinkler Pi v1.02

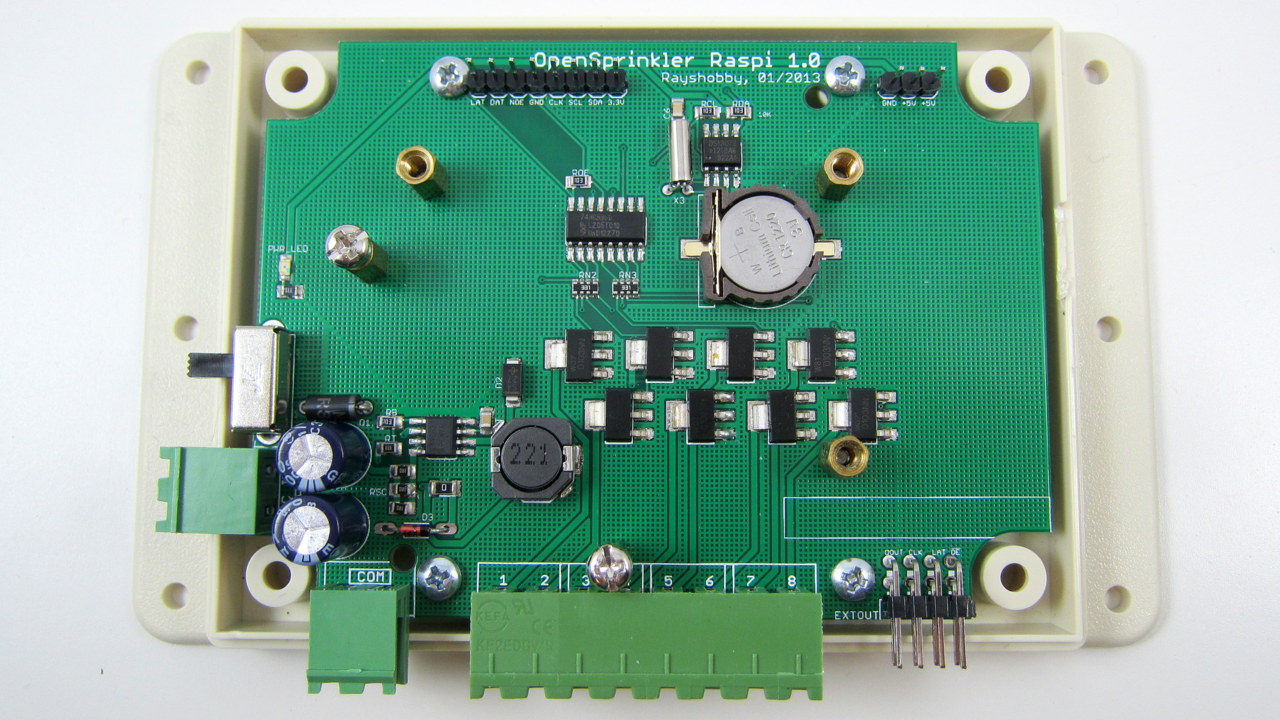

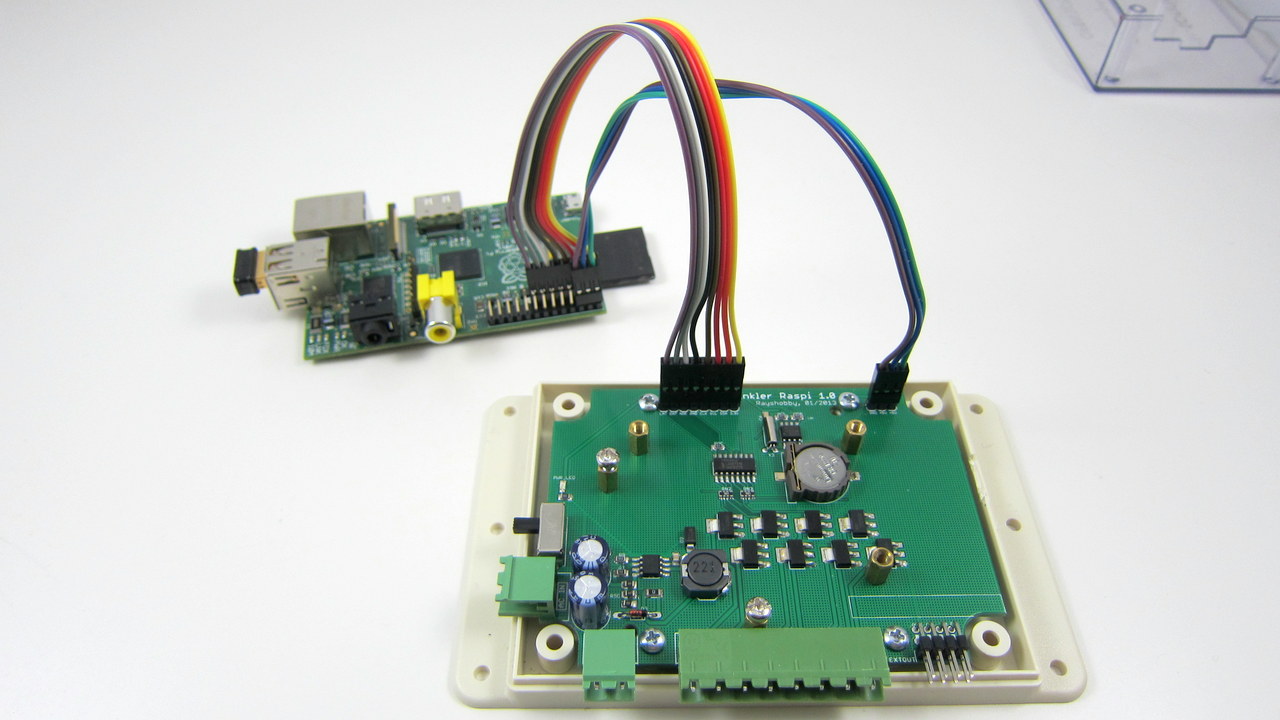

• OpenSprinkler Pi is a sprinkler / irrigation extension board for Raspberry Pi that allows direct access and control of sprinkler valves. It has on-board 24VAC to 5VDC switching regulator, solenoid drivers, RTC and backup battery.
• Controls 8 stations. Can connect to OpenSprinkler zone expansion board (see above) to enable more stations.
• Includes one assembled and tested OpenSprinkler Pi board, separation pillars, terminal blocks, 8-pin and 3-pin cables, and enclosure (optional).
• Does NOT include RPi or 24VAC sprinkler transformer, which you need to purchase separately.
• Product homepage and user manual: http://pi.opensprinkler.com
• F.A.Q: Difference with OpenSprinkler.

Assembled and tested: $62.99 (Australian users: OpenLab is an OpenSprinkler distributor in Australia. Please check their available stock for faster shipping within Australia).

(If the buttons don’t respond, make sure your browser’s pop-up blocker is disabled).

SquareWear v1.1

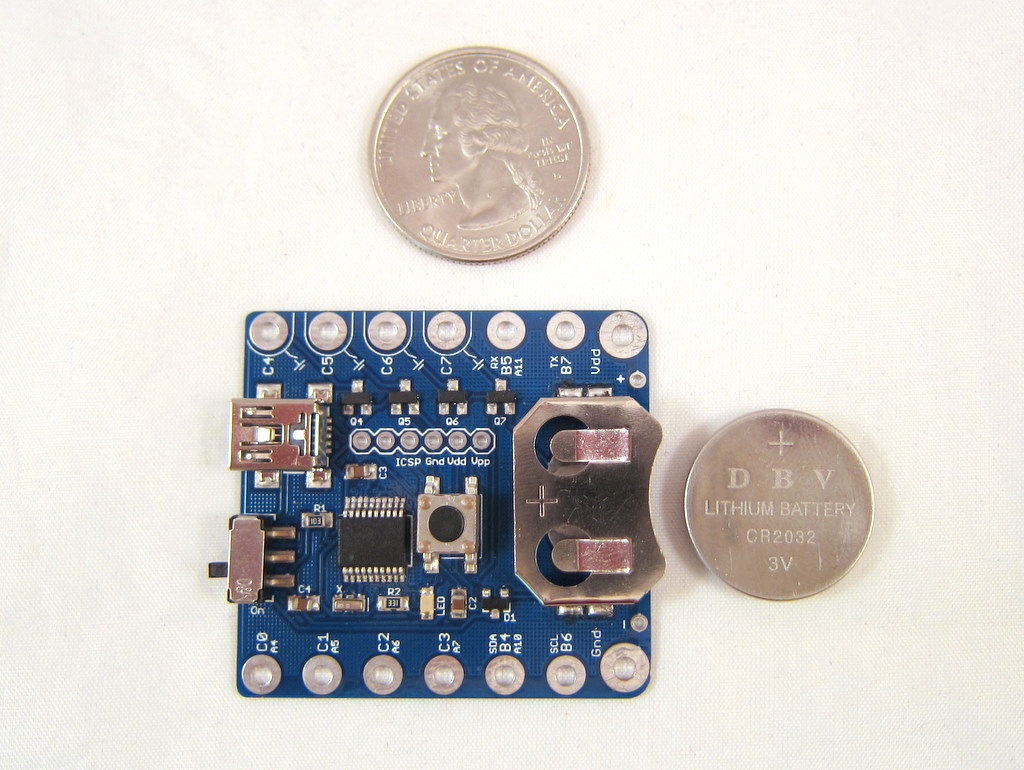

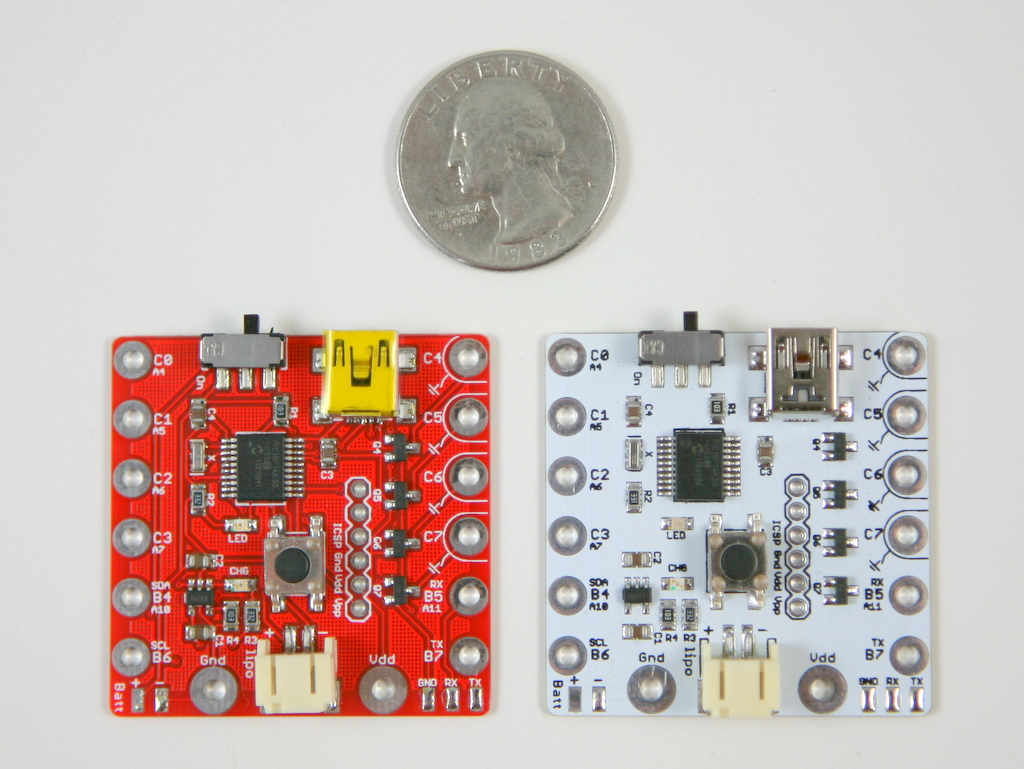

This is SquareWear v1.1, an open-source wearable electronics board. The coin version (v1.1c, blue colored) measure 1.6″x1.7″ and has built-in 3V coin battery; the li-po version (v1.1p, red or white colored) measures 1.6″x1.6″, uses an external li-po battery and has built-in li-po charger.

• The Board includes one assembled and tested circuit board. The coin version (v1.1c) additionally includes one CR2032 battery; the li-po version (1.1p) does NOT include li-po battery (see Starter Pack below).
• Mini-USB cable is NOT included, which you probably already have.

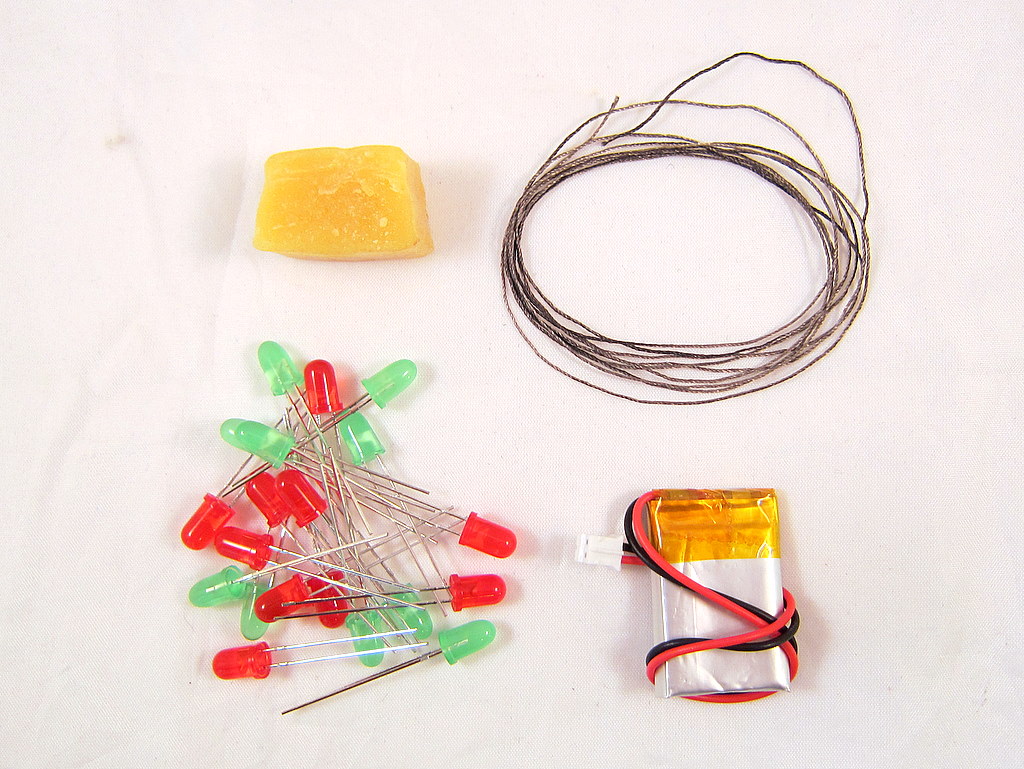

• The Starter Pack includes 50 inch conductive thread, beeswax, 10 green and 10 red LEDs. The li-po start pack additionally includes one 250mA li-po battery.
• Please check the User Manual and Project Tutorials.

SquareWear LED Badge Kit

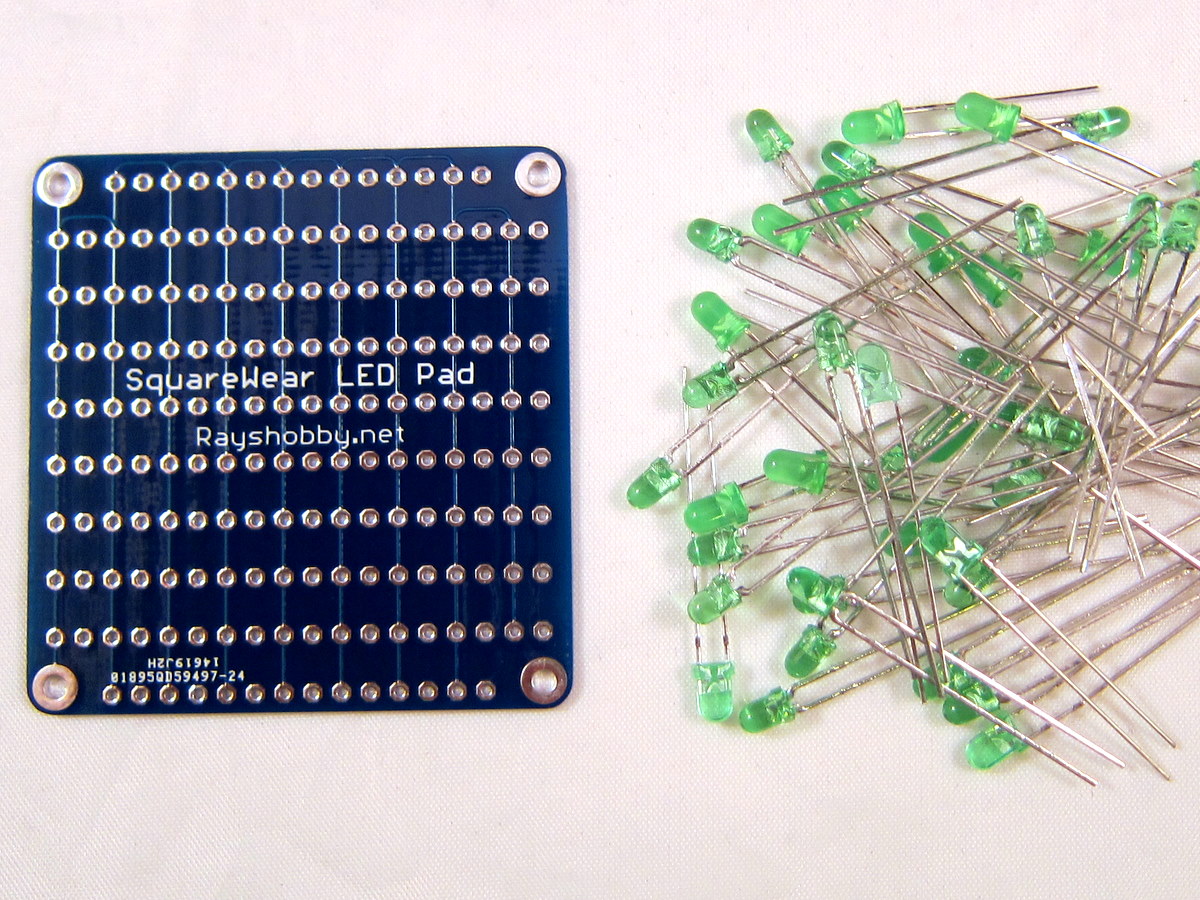

This is a DIY kit (requires soldering) to make your own LED badge and use it with SquareWear! The board measures 2″x2″ (5cmx5cm) and is fits 3mm LEDs. The kit comes with one PCB, 50 LEDs at your choice of color, and two alligator cables.

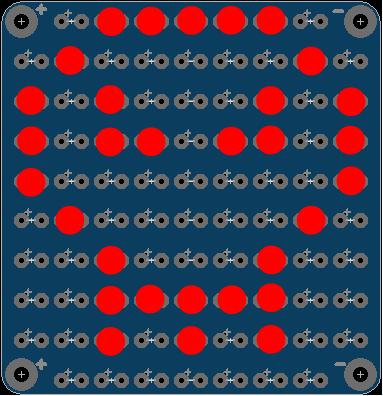

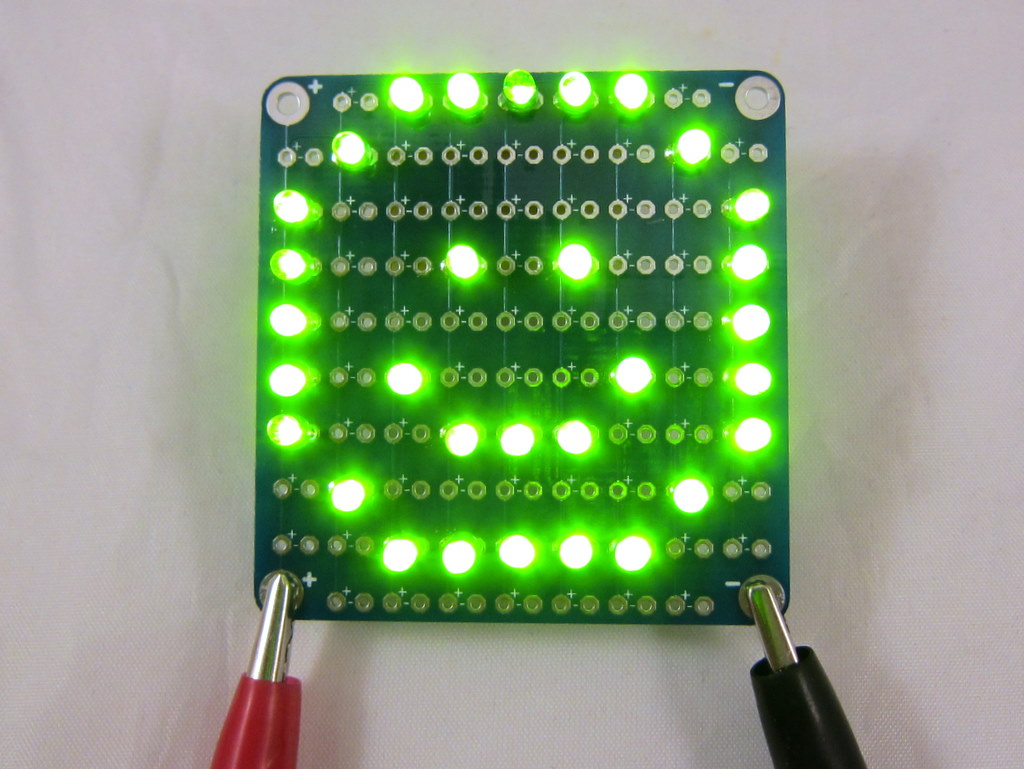

To use it, design a pixel pattern you like, such as a smiley, a heart, or a letter etc. Then insert LEDs to the corresponding pins. The longer (positive) lead of the LED should go into the pin marked ‘+‘. Half-grid points are allowed, as long as the longer lead goes into a ‘+’ pin. All LEDs are connected in parallel, so they will all light up together. You can fit a SquareWear behind this board (using double sided tape and appropriate insulation) to make a standalone LED badge. The board has sewable pin holes on the four corners. To control it with SquareWear, connect the + sewable pin to SquareWear’s Vdd, and - sewable pin to one of the power sink pins.

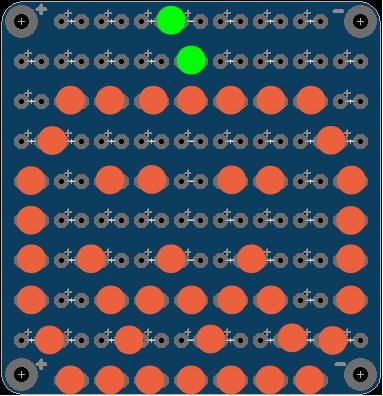

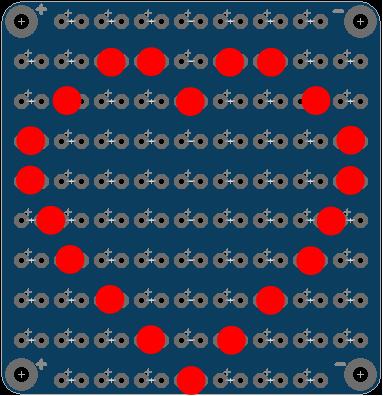

Here are some example patterns to get you started:

Special LEDs (pack of 5)

These are special LEDs that will bring a lot of fun to your projects! Each comes in a pack of 5.

• Self-Flashing Red: connect it to a battery and it will starting flashing on its own at 1Hz.
• Self-Flashing/Fading Multi-Color: has built-in three color LEDs, will flashes and fades at a pre-configured pattern.

Click on the embedded movies on the left to see these LEDs in action.

AASaver LED Kit v1.1

This is the updated AASaver v1.1. Includes one assembled and tested circuit board, four AA battery clips, two bright white LEDs (25000 mcd), and two 2-pin headers. This version can be used as both breadboard power supply and LED flashlight, through an on-board switch.
Click here to see instructions about how to use it.

$8.99

(Sold out. Sign up for stock notification).

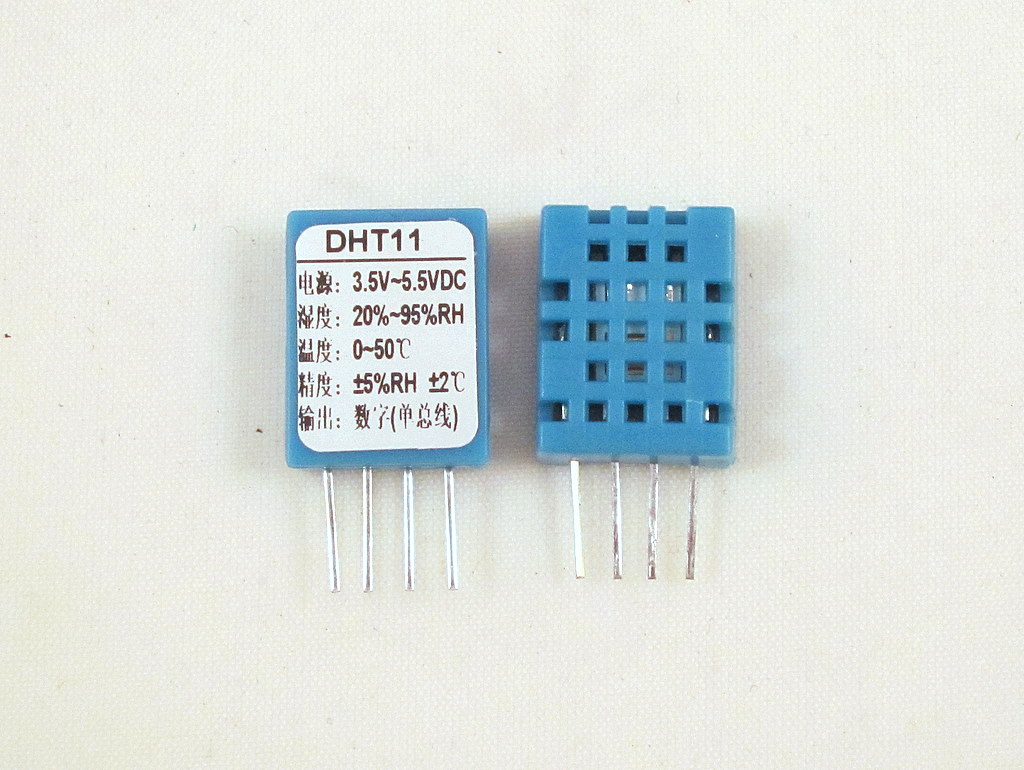

DHT11 Temperature and Humidity Sensor

Low-cost and requires a single digital I/O pin to read both temperature and humidity values. Details:

• Operating voltage: 3-5V; Humidity: 20%-80%, 5% accuracy; Temperature: 0° to 50°C, ±2°C accuracy. Datasheet, and Adafruit’s DHT sensor Tutorial
• DHT Arduino library (works with both 16MHz and 8MHz Arduino).

$4.50

DHT22 Temperature and Humidity Sensor

Similar to DHT11 but with improved measurement range and accuracy. Details:

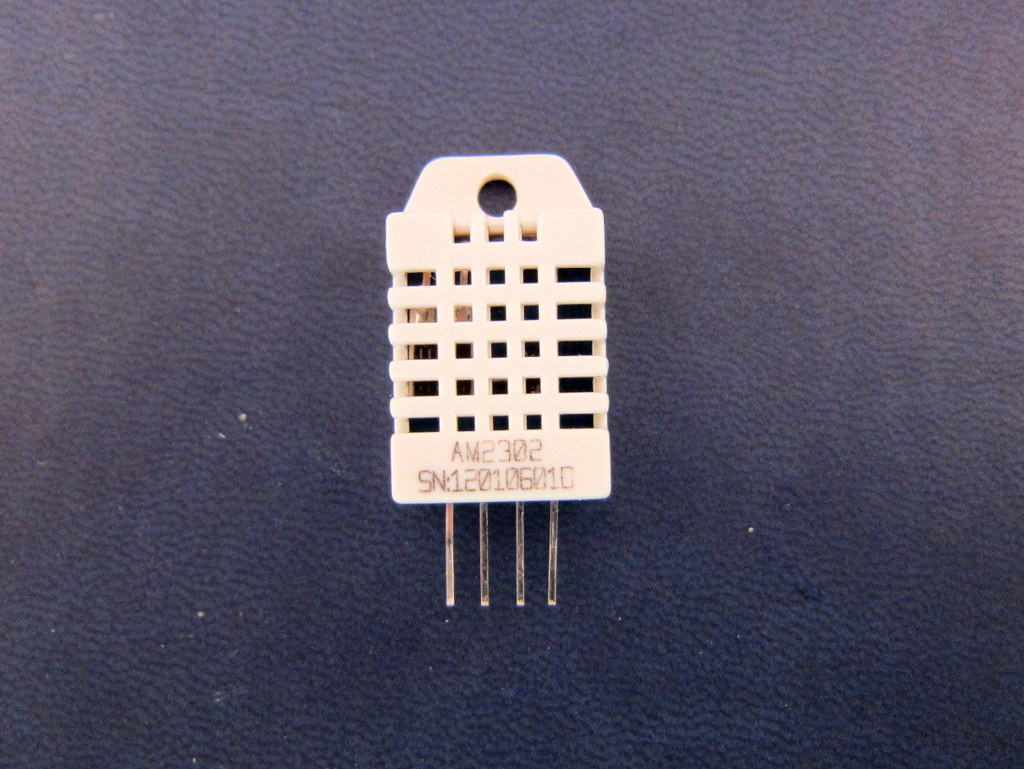

• Operating voltage: 3-5V, Humidity: 0%-100%, 2-5% accuracy; Temperature: -40° to 125°C, ±0.5°C accuracy. Datasheet, and Adafruit’s DHT sensor Tutorial
• DHT Arduino library (works with both 16MHz and 8MHz Arduino).

$9.50 (Sold Out)

RF Transmitter + Receiver Pair (434MHz)

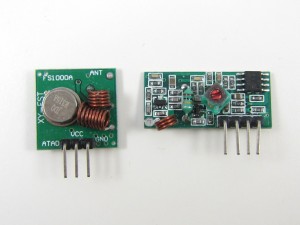

This is a pair of 434MHz RF transmitter and receiver modules. Compatible with SparkFun’s 434MHz RF transmitter and RF receiver. Each module has three pins: Vcc, Gnd, Data. 5V standard operating voltage. Transmission range: 500 feet with external antenna. Check this blog post for an example use of the RF receiver and transmitter.

$6.50

RF Transmitter + Receiver Pair (315MHz)

This is a pair of 315MHz RF transmitter and receiver modules. Similar to above, but at 315MHz frequency. Each module has three pins: Vcc, Gnd, Data. 5V standard operating voltage. Transmission range: 500 feet with external antenna. Check this blog post for an example use of the RF receiver and transmitter.

$6.50

USB Female A to Male B Converter

Use this converter to power your WiFi adapter through OpenSprinkler’s built-in USB port. Details can be found here.

$1.99

MOVs (varistors) pack of 8

MOVs (metal-oxide varistors) are useful for protecting circuits from impulse high voltages such as lightning. This is a pack of eight 07D560K MOVs. DC voltage 56V, clamping voltage 110V. Use them for the OpenSprinkler controller. Note: only surface mount versions (including 1.4s and extension boards) have PCB holes designed to fit MOVs; DIY kits do not have these PCB holes. Details and picture examples can be found here.

$1.00

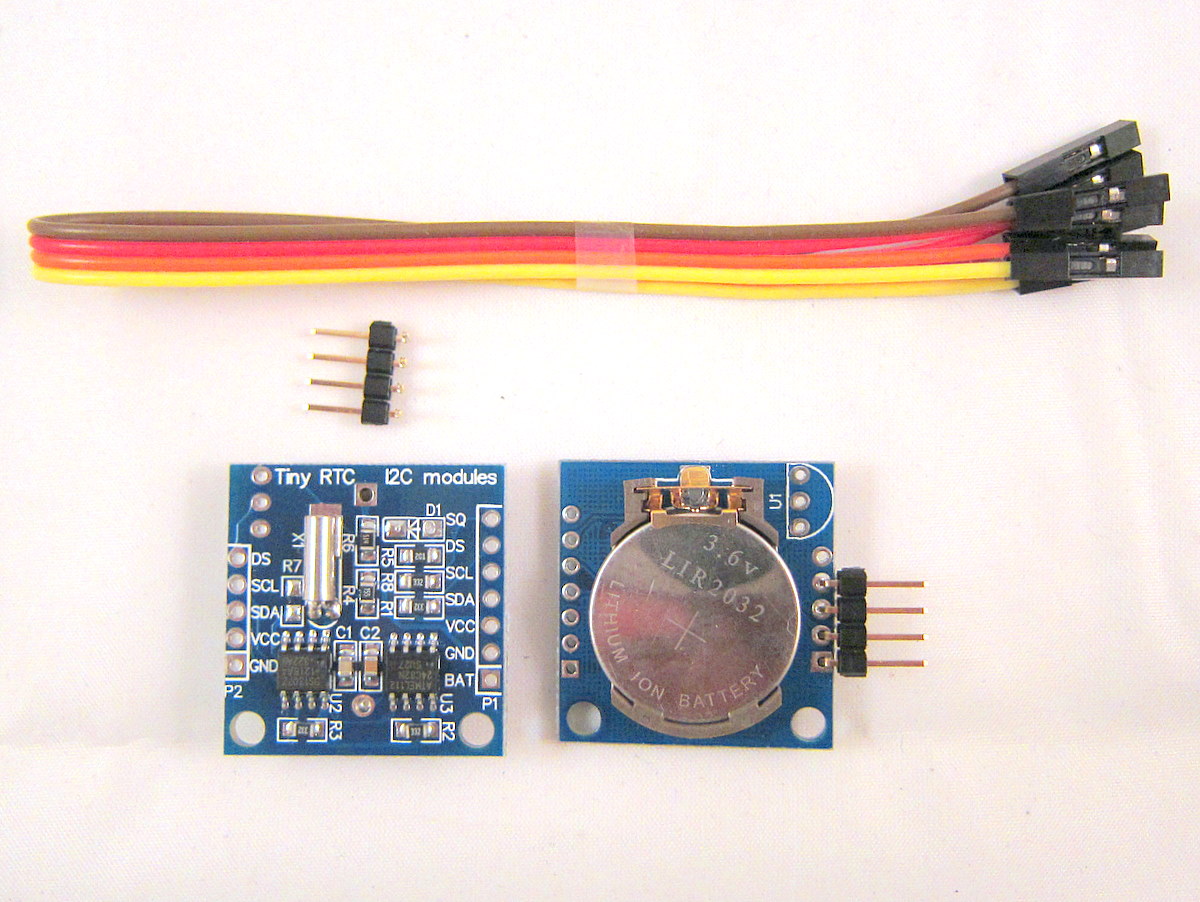

DS1307 RTC Module (with battery)

DS1307 real-time clock (RTC) module with built-in lithium rechargeable battery, 4KB EEPROM, 1×4 pin headers, and female jumper wires. Suitable for previous versions of OpenSprinkler that do not have built-in RTC. You can also use this module with standard Arduino or other microcontroller projects. To use, just connect the SCL, SDA, VCC and GND pins to the corresponding pins on your controller (note that VCC must be connected to the +5V/VIN line on your controller; connecting it to 3.3V will NOT work).

Click here for instructions on how to connect the RTC to OpenSprinkler.

$5.99 (Sold out)

USB Programmer (DIY kit) for OpenSprinkler v1.0/1.1

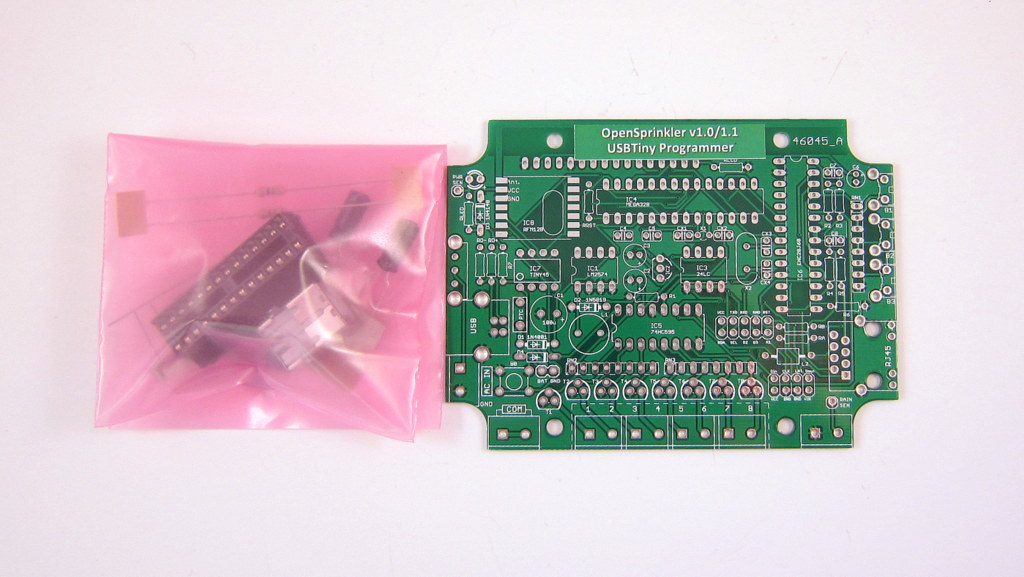

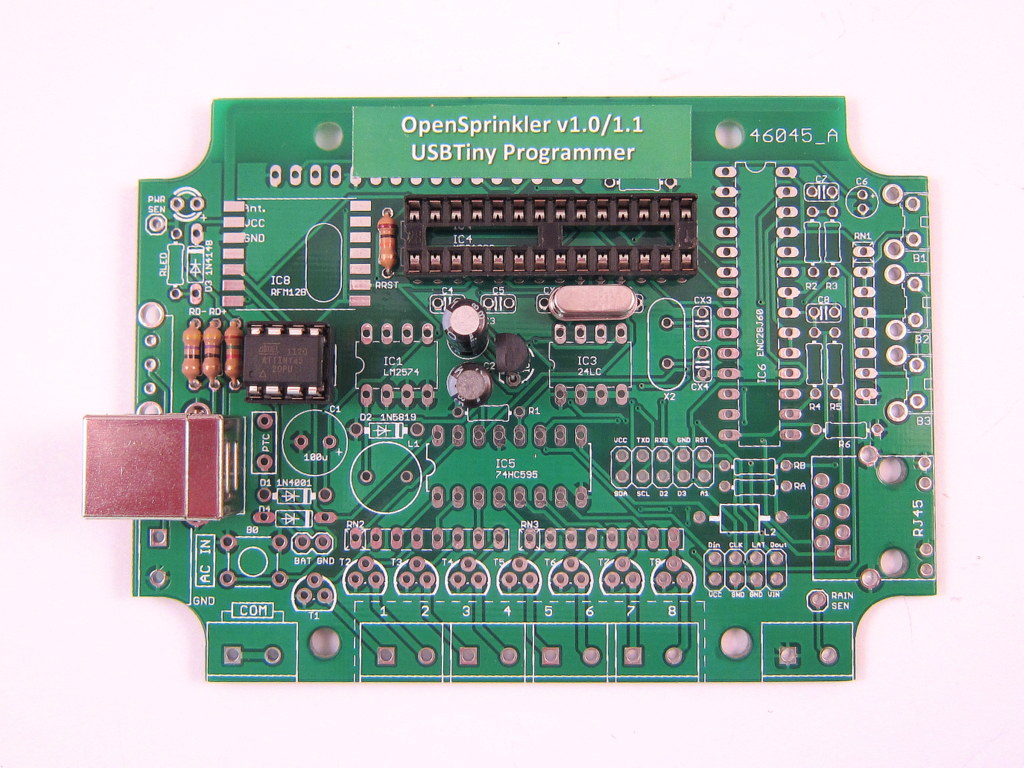

This is a DIY USBtiny programmer for OpenSprinkler v1.0/1.1, which allows you upload a .hex program larger than 30KB. It comes handy if you have OpenSprinkler v1.0 or 1.1, and want to reflash the controller with firmware v1.8 or above. The kit includes everything you need to build the programmer (soldering required).

Note: if you own a separate OpenSprinkler DIY kit of v1.2u or above, you do not need this programmer, because you can use the built-in USBtiny programmer on v1.2u or above to program your v1.1 or 1.0 mcu.

Click here for instructions on building and using the programmer.

$8.50 (Sold out)

USB-to-Serial (RS232) Converter

This is an integrated USB-to-Serial (RS232) converter based on Prolific PL2303HX chip. A low-cost and convenient tool for debugging and serial communication. Compatible with Adafruit’s same product.

• Cable length: 3 feet (1 meter).
• Wiring: Red->+5V supply, Black->Ground, Green->TX, White->RX. Connect TX to the RXD pin of your target device (such as microcontroller), RX to the your device’s TXD, and ground to ground. Usually you do not need to connect the +5V supply pin, as long as your target device is powered.
• No driver needed on Linux. Windows and Mac drivers can be downloaded here. The device will report as a Serial COM port. You can then use Arduino’s serial monitor, putty, gtkterm, or any of your favorite serial monitors to talk to it.

$4.50

OpenSprinkler v1.2u PCB

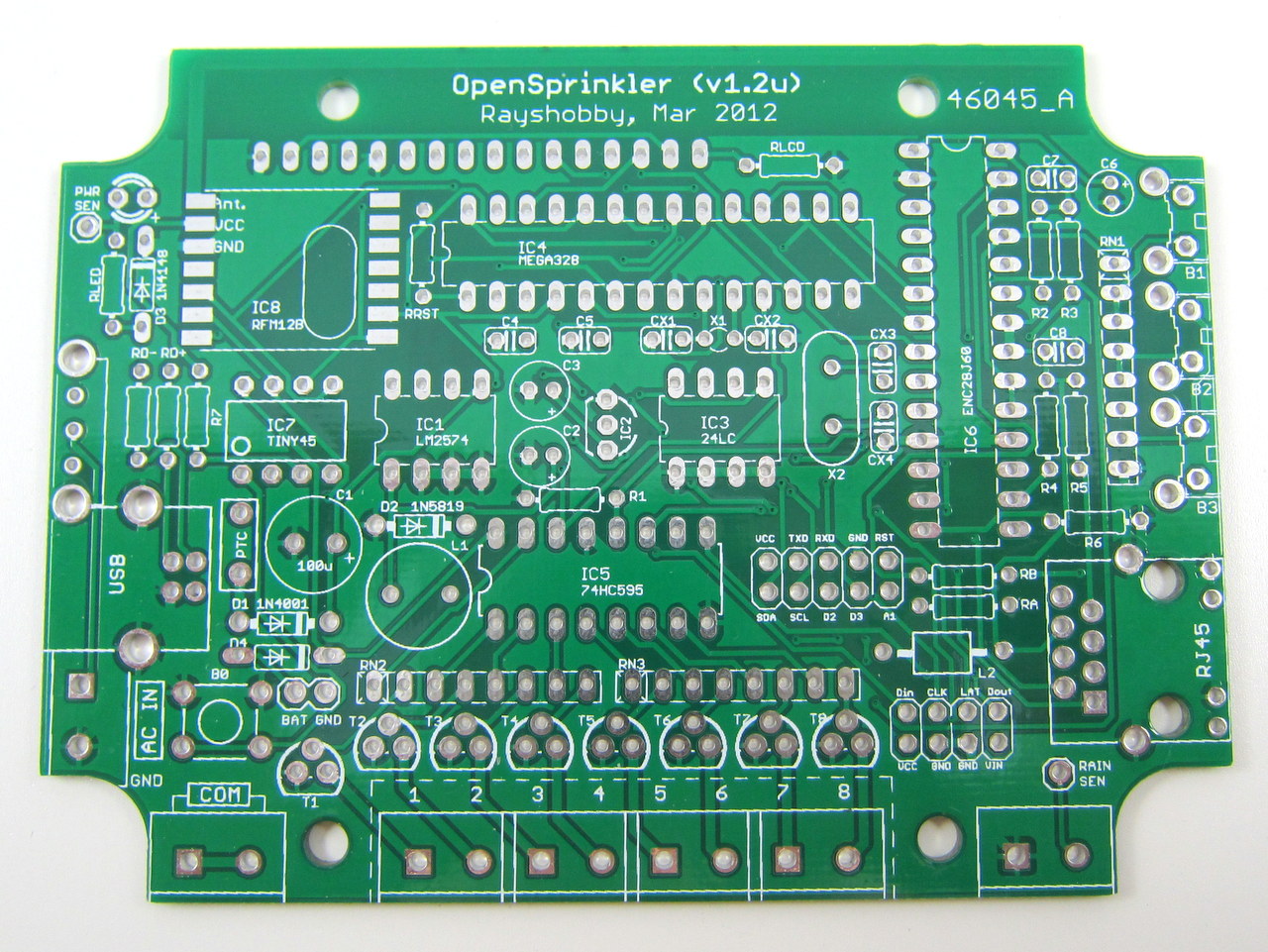

This is an undocumented version of OpenSprinkler 1.2u PCB.
Schematic and board design can be found here. The part list is very similar to the official OpenSprinkler 1.2u. The main difference is that this version uses LM2574N switching regulator (same with OpenSprinkler v1.1). These PCBs are provided as is — we do not have build instructions, which you can figure out from the official 1.2u and 1.1 instructions. Besides OpenSprinkler, you can also use this PCB to build a general Ethernet and RF12 enabled Arduino board. The pin connections are compatible with JeeNode and NaNode.

$1.20
